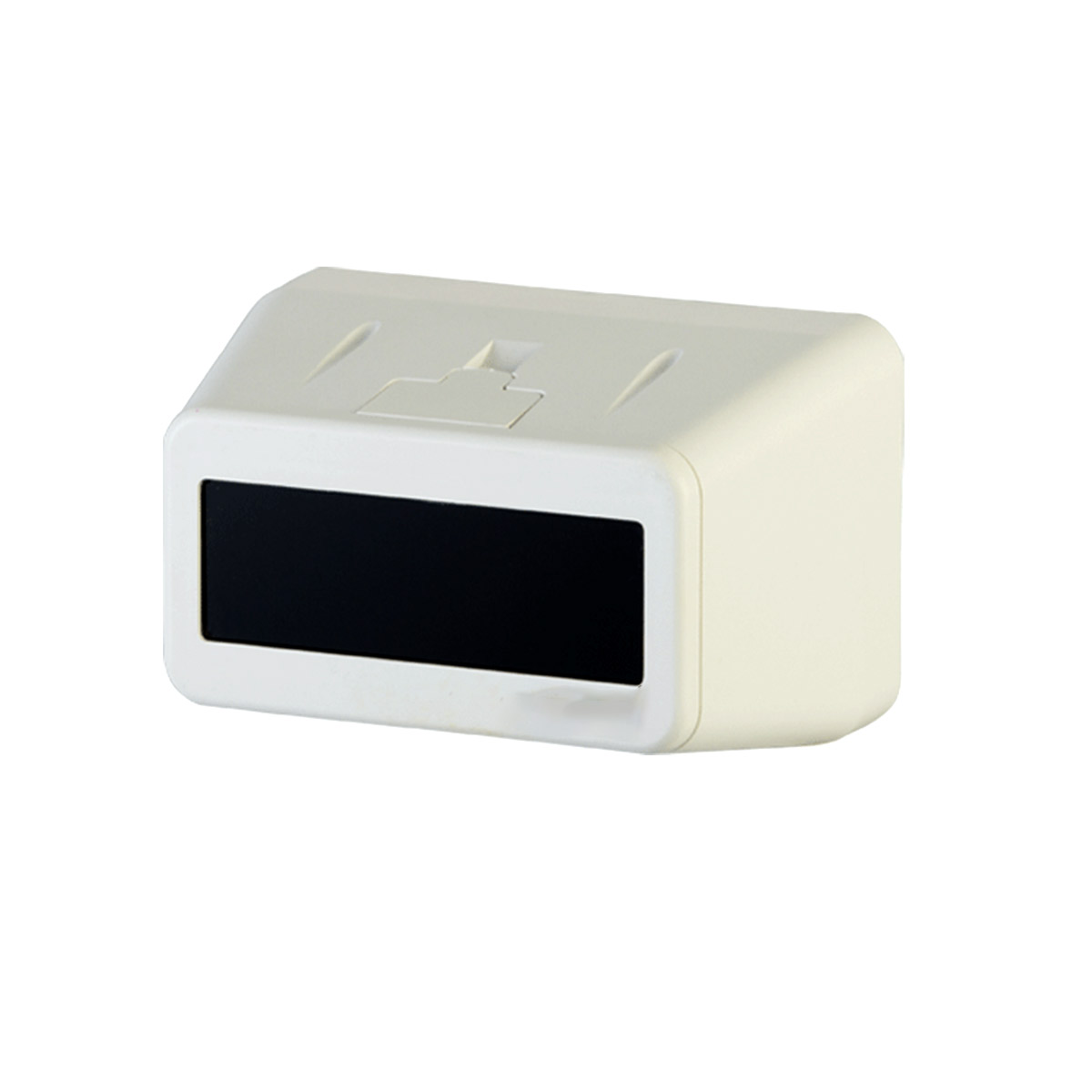

Beam Detector 50mtr & 100mtr – Long-Range Optical Smoke Detection System
Technical Specifications
Detection Type: Projected Beam Optical Smoke Detector
Available Ranges:
50 meters
100 meters
Technology: Infrared beam with reflector or receiver
Power Supply: 24V DC
Alarm Relay Outputs: Normally Open (NO) / Normally Closed (NC)
Response Time: Fast response with adjustable sensitivity
Installation Type: Wall/ceiling-mounted – transmitter and receiver/reflector alignment
Operating Temperature: -10°C to +55°C
Operating Humidity: Up to 95% RH (non-condensing)
Housing Material: Flame-retardant ABS or polycarbonate
Features and Benefits
Ideal for large-area coverage with minimal installation
Advanced alignment features ensure accurate setup
Adjustable sensitivity for various environment types
Low maintenance with wide area monitoring capability
Visual indicators for alignment and fault detection
Compatible with most fire alarm panels
Applications and Use Cases
Warehouses and Distribution Centers
Shopping Malls and Atriums
Manufacturing Facilities
Airports and Railway Terminals
Theatres, Convention Halls, and Auditoriums
High-Ceilinged Buildings
Suitable Industry Types
Industrial and Manufacturing
Transportation and Logistics
Retail and Commercial Real Estate
Hospitality and Event Spaces
Airports and Infrastructure Facilities
Packaging and Delivery
Packaging: Each unit includes detector, reflector or receiver, mounting accessories, and user manual
Delivery Time: 5–10 working days (depending on location and stock availability)
Compliance: As per IS / EN / UL standards
Usage Note
Ensure proper alignment and testing after installation. Periodic cleaning and maintenance are essential for reliable performance. Always follow installation guidelines provided by the manufacturer.
