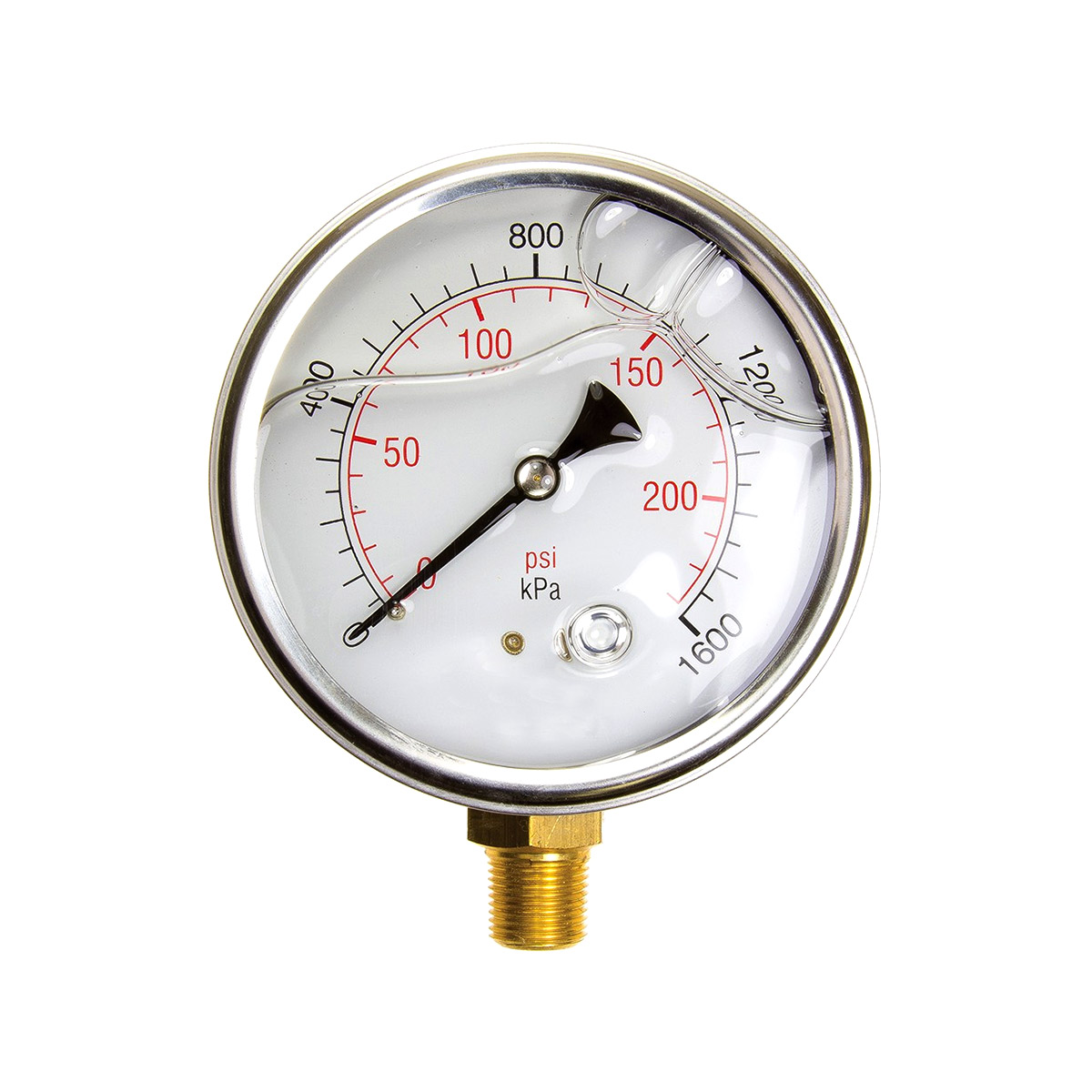

Hydrant Pressure Gauge
Technical Specifications
Type: Analog pressure gauge
Display Range: 0–21 kg/cm² (or as per requirement)
Dial Size: 63mm / 100mm (custom options available)
Connection Type: Bottom / Back entry (1/4″, 3/8″, or 1/2″ BSP)
Material: Stainless steel or brass casing (optional)
Glass: Toughened or acrylic cover
Accuracy: ±1.6% of full scale
Mounting: Direct or panel-mounted
Temperature Range: -20°C to +60°C
Compliance: IS/ISO certified
Features and Benefits
Accurate pressure monitoring for fire hydrant systems
Durable construction for long-term usage in harsh environments
Easy-to-read dial with clear markings
Resistant to vibration, corrosion, and water ingress
Enhances fire safety readiness through regular system checks
Applications and Use Cases
Installed on fire hydrants and wet riser systems
Municipal water supply and utility hydrants
Commercial buildings and residential complexes
Industrial facilities, plants, and warehouses
Hospitals, schools, malls, and public infrastructure
Suitable Industry Types
Fire Protection and Safety
Real Estate and Construction
Industrial Manufacturing
Municipal Services
Oil & Gas, Power Plants
Packaging and Delivery
Packaging: Individually boxed with foam protection
Delivery Time: 3–7 working days
Storage Instructions: Keep in a dry, dust-free environment
Usage Note
Ensure the Hydrant Pressure Gauge is calibrated regularly for accurate readings. Install in easily visible positions on hydrant systems and test periodically for responsiveness.
