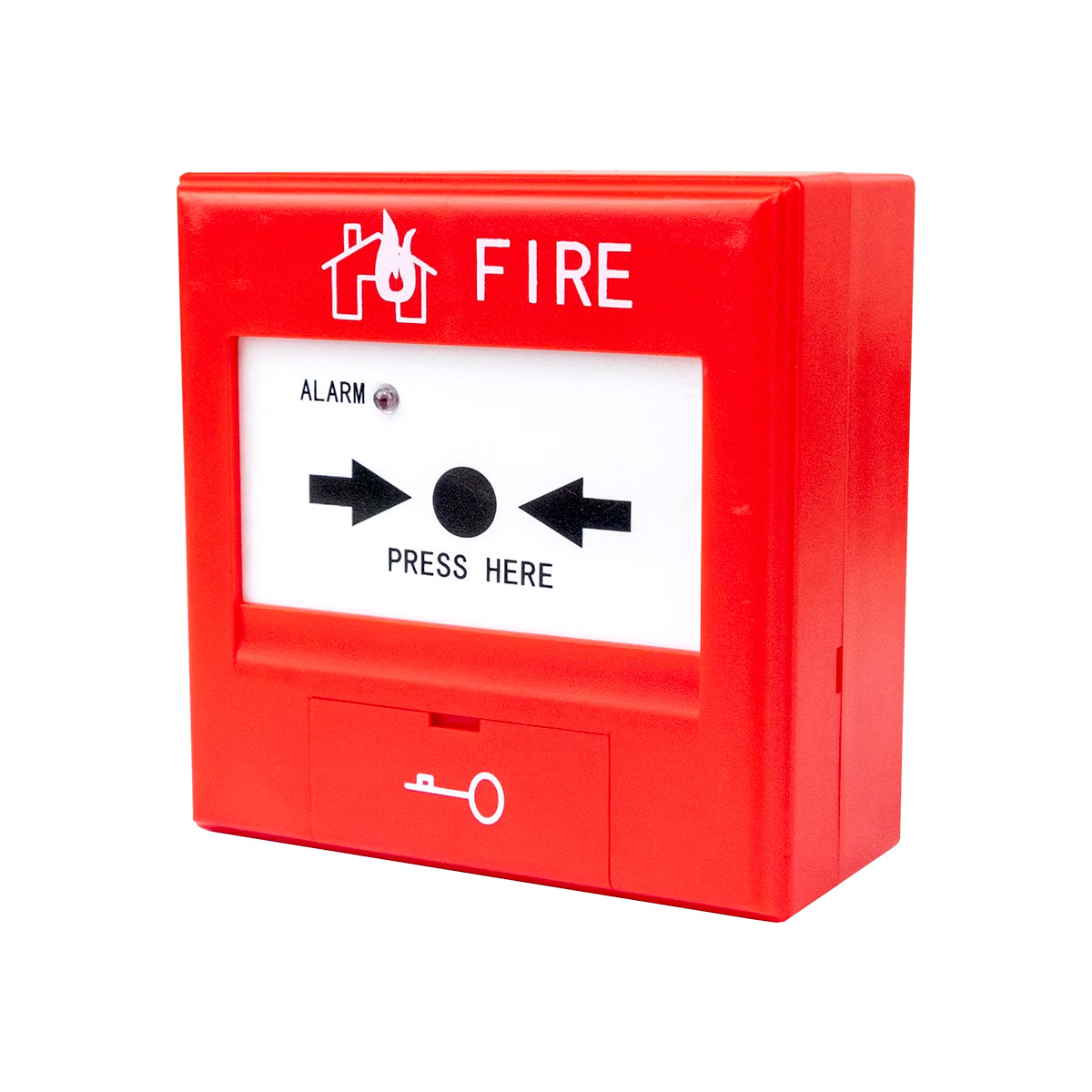

Manual Call Point (MCP) – Ravel Make | Red, Yellow & Green
Technical Specifications
Brand: Ravel
Model: RE-716MR or equivalent
Type: Manual Call Point – Resettable
Operation: Press-to-activate with key reset
Material: Fire-retardant ABS plastic
Colors Available: Red, Yellow, Green
Compliance: IS 2189:2008
Mounting: Surface/flush mountable
Indication: Manual activation visible through status window
Terminals: Suitable for conventional wiring
Features and Benefits
Color-coded options for designated zone usage or signaling type
Resettable design – no glass breakage, easy maintenance
Highly durable and UV-resistant body
Easy push-button operation during emergencies
Key reset feature for quick reuse post testing or alert
Clearly visible and easy to locate on-site
IS standard compliant and suitable for Indian fire safety requirements
Applications and Use Cases
Manual fire alarm activation at exit points, corridors, and staircases
Zoned fire detection systems with color-coded alert triggers
Educational campuses, malls, hospitals, and factories
Hazardous areas requiring immediate manual alert capabilities
Emergency system override/alert for non-fire situations
Suitable Industry Types
Industrial Warehouses & Factories
Commercial Buildings & Shopping Malls
Residential Towers & Housing Societies
Educational Institutions
Healthcare Facilities
Banks and Government Offices
Packaging and Delivery
Packaging: Individually boxed with reset key included
Delivery Timeline: 2–4 working days across India
Installation: Mounting accessories included
Warranty: 12 months from date of invoice
Usage Note
Install MCPs at a height of 1.4m from floor level as per BIS norms. Test units monthly and ensure clear access at all times.
