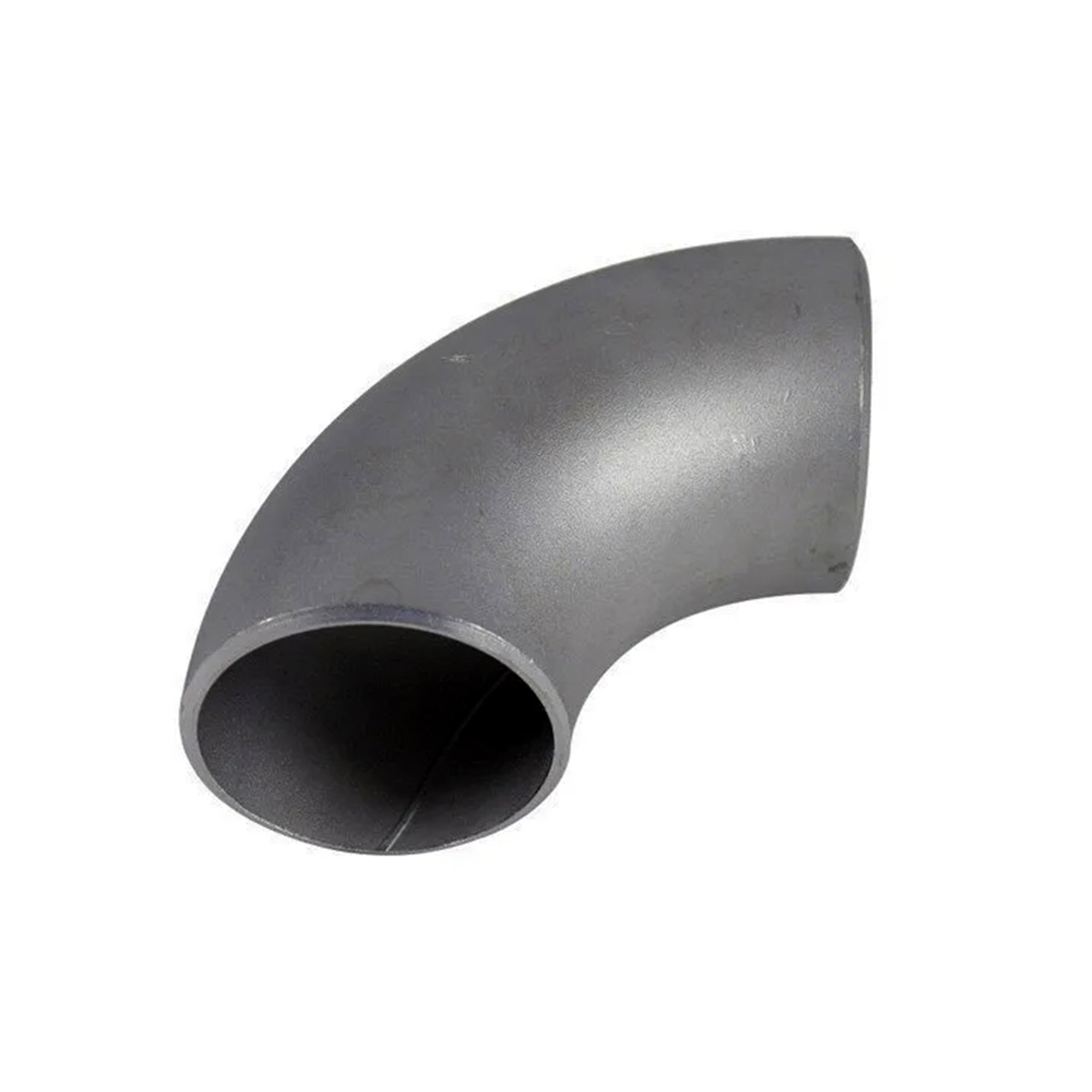

MS Bend Elbow – Durable and Reliable Elbow Fitting for Piping Systems
Available Size
2 inch (DN50)
3 inch (DN80)
Technical Specifications
Material: Mild steel (MS) for strength, durability, and corrosion resistance
Size Options:
2 inch (DN50)
3 inch (DN80)
Pressure Rating: Suitable for medium-pressure systems, ensuring reliable performance
Temperature Range: Suitable for high-temperature and high-pressure applications (typically -20°C to 120°C)
Finish: Available with painted coating for added protection against corrosion and wear
Connection Type: Welded or flanged connections for easy integration into various systems
Angle: Typically 90-degree bend for efficient redirection of flow
Compliance: Meets ISO 9001, ANSI, and DIN standards for pipe fittings
Features and Benefits
Durable Construction: Made from mild steel (MS), the elbow offers strength, stability, and resistance to wear, ensuring a long service life
Corrosion Resistant: Painted finish ensures protection against corrosion, making it suitable for water systems, chemical processes, and HVAC applications
Efficient Flow Redirection: The 90-degree bend ensures smooth flow redirection with minimal pressure drop, maintaining flow efficiency
Versatile Applications: Suitable for liquid, gas, and slurry flow in a variety of systems, including water pipelines, plumbing, and industrial processing systems
Easy Installation: Available with welded or flanged ends for easy connection to pipes, making installation quick and simple
Leak-Proof Performance: The tight seal ensures no leaks during system operation, protecting the integrity of the entire piping system
Applications and Use Cases
Water distribution systems to redirect flow in piping systems
HVAC systems for air ducts, cooling systems, and ventilation pipes
Plumbing systems to connect pipes at various angles, ensuring smooth water flow
Industrial applications for chemical pipelines, oil & gas transport, and fluid processing systems
Chemical and petrochemical industries for liquid and gas transport where pressure and temperature control are critical
Suitable Industry Types
Plumbing & HVAC
Water Treatment & Distribution
Chemical & Petrochemical
Industrial Manufacturing
Oil & Gas
Construction & Infrastructure
Packaging and Delivery
Packaging: Securely packed to prevent damage during transport
Delivery: Within 3–5 working days from order confirmation
Bulk Order Support: Custom packaging and branding available for bulk orders
Usage Note
Ensure the MS Bend Elbow is installed properly with appropriate seals and fittings to prevent leaks and maintain pressure integrity. Regularly inspect the elbow for any damage, wear, or corrosion in high-temperature or high-pressure applications. Free delivery and installation are available within a 10 km radius from our service center.
